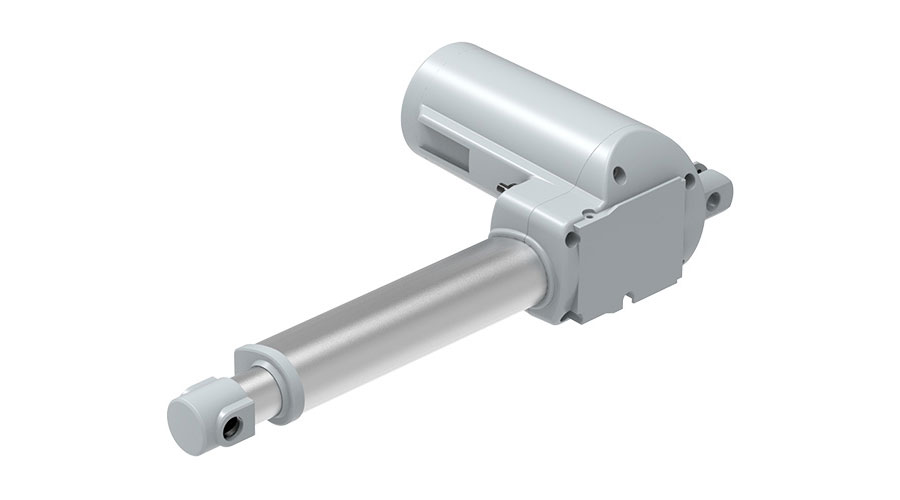

TA31 Series

Linear Actuators

The TA31 can be used in medical beds and chairs, or home care applications

Document Downloads

Data Sheet 3D

The TA31 is a simplification of our medical grade linear actuators. The TA31’s simplicity provides an economical, yet high quality, option for medical applications such as medical beds, medical chairs, or home care options.

General Features

  • Voltage of motor: 24V DC, 24V DC (PTC)
  • Maximum load: 6,000N in push
  • Maximum load: 3,000N in pull
  • Maximum speed at full load: 13.4mm/s (with 2000N in a push or pull condition)
  • Stroke: 25~450mm
  • Minimum installation dimension: Stroke+157mm
  • Color: Black or grey
  • IP Rating: Up to IP66W
  • Operational temperature range: +5°C~+45°C
  • Option: Safety nut, Hall sensor(s)
  • An economic solution with compact installation dimension

Standard Dimension (mm)
