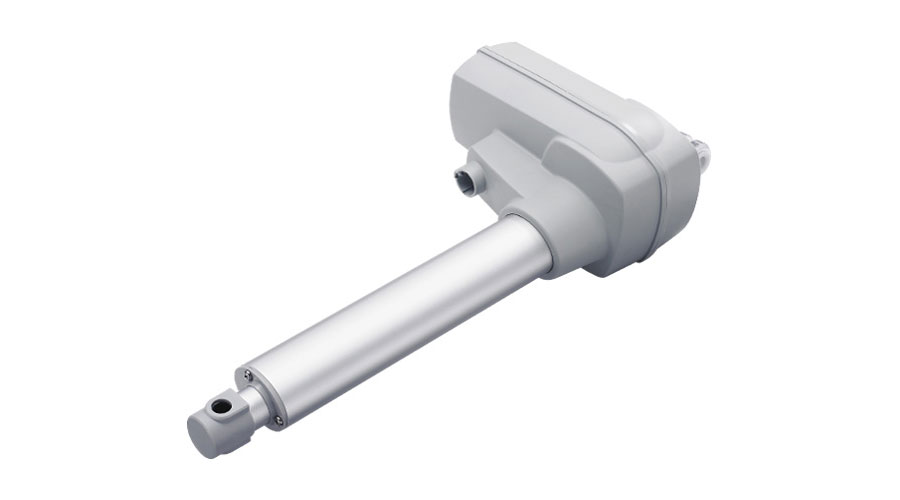

TA24 Series

Linear Actuators

The TA24 includes a manual release function in event of emergency

TiMOTION’s TA24 series linear actuator is designed primarily, up to 1000Kg patient lifts. This application requires a linear actuator whose design is focused on safety, reliability and effortless operation. A significant feature of the TA24 is the manual release function that allows for lowering of the patient in the event of an emergency or electrical power outage. The TA24 linear actuator is available with an optional IP66 or IP66W rating.

General Features

  • Voltage of motor: 24V DC , or 36V DC
  • Maximum load: 10,000N in push
  • Maximum load: 6,000N in pull
  • Maximum speed at full load: 8mm/s (with 6,000N in a push or pull condition)
  • Minimum installation dimension: Stroke+190mm
  • Minimum installation dimension: Stroke+267mm (for patient hoist)
  • Color: Black or grey
  • IP rating: up to IP66W
  • Certificate: EN60601-1 compliant
  • Operational temperature range: +5°C~+45°C
  • Options: Safety nut, Hall/POT sensor(s), manual release for patient hoist applications

Standard Dimension (mm)
